Speaker Systems and Modular Speakers
All my speakers are manufactured to Rolls Royce standard. The cabinets are made by a very experienced craftsman in Taiwan. Horns are milled individually by CNC routers. The piano finishing is performed by the Kawai Piano Company in Taiwan. I hand-build the cable, the crossover, assemble and test the speaker. It takes me 10-12 weeks to make a pair of speakers.
12" 3-Way Speakers
The three models of this series are the backbone of the 3-way systems. They offer state of the art performance in a cabinet of reasonable size which are suitable for rooms as small as 20 square meters (200 square feet).
12" 3-Way V1
Work began on this original version in 2008. Its development took many years. Much of the work was done in perfecting the twin horn technology in which the midrange and high frequency horns must work in union. Production finally took place in 2016.
Specifications:
Driver complement:
Woofer: 305 mm (12"), 101.6 mm (4") voice coil, ferrite magnet, treated paper cone
Midrange compression driver: 101.6 mm (4") aluminium diaphragm, neodymium magnet
Tweeter: aluminium diaphragm, alnico magnet
Horns:
Midrange: 333 mm (13.1") diameter, proprietary contour
High Frequency: 263 mm (10.35") diameter, proprietary contour
Frequency response: 25-38,000 Hz
Impedance: 8 ohms
Power handling: 150 watts program
Efficiency: 93 db/watt
Dimensions: 423mm (16.7") W X 511 mm (20.1") D X 1398 mm (55") H
Weight: approximately 180 kg (396 lbs) each
Standard finish: piano black cabinet, white midrange horn, other colors are available by special order
Connection: Speakon connectors and binding posts, tri-wired
Grounding: Speakon connecter
12" 3-Way V2
This is an improved version of V1. The main difference is the use of a beryllium diaphragm in the midrange compression driver and larger size horns.
All specifications are the same as 12-3 Way V1 except the following:
Beryllium diaphragm in the midrange compression driver
Midrange horn size: 360 mm (14.17") diameter, proprietary contour
High frequency horn size: 273 mm (10.75 ") diameter, proprietary contour
12" 3-Way V3
This is a completely new speaker.
The midrange range compression driver and the tweeter are the same as those used in our flagship 16"3-Way speaker. The woofer is the model 300AII made by Fostex, Japan.
Specifications:
Driver complements:
Woofer: 305 mm (12"), alnico magnet, 76 mm voice coil (3"), treated paper cone
Midrange compression driver: 101.6 mm (4") beryllium diaphragm, alnico magnet, 50.8 mm (2") exit
Super tweeter: magnesium diaphragm, alnico magnet
Horns:
Midrange: 380 mm (15"), proprietary contour
High frequency: 275 mm (10.83"), proprietary contour
Frequency response: 25-35,000 Hz
Impedance: 8 ohms
Power handling: 150 watts program
Efficiency: 93 dB/watt
Dimensions: 437 mm (17.2") W X 528 mm (20.8") D X 1,465 mm (57.7") H
Weight: approximately 230 kg (506 lbs) each
Standard finish: piano black cabinet, white midrange horn, other colors are available by special order
Connection: Speakon connectors and binding posts, tri-wired
Grounding: Speakon connector
​
ABOVE: 12" 3-Way
ABOVE: 16" 3-Way
16" 3-Way
​
This is my flagship speaker system, far exceeding the "The Majestic" in performance.
Specifications:
Driver Complement:
Woofer: TAD 1601a 400 mm (16") driver, 101.6 mm (4") voice coil , alnico magnet, treated paper cone
Midrange compressor driver: beryllium diaphragm, 101.6 mm (4") voice coil, neodymium magnet, 50.8 mm (2") exit
Tweeter: magnesium diaphragm, alnico magnet
Horns:
Midrange: 420 mm (16.5") proprietary contour
High frequency: 330 mm (13") proprietary contour
Frequency response: 28-38,000 Hz
Impedance: 8 ohms
power handling: 350 watts program
Efficiency: 97 dB/ watt
Weight: approximately 450 kg (990 lbs) each
Dimensions: 527 mm (20.75") W x 642 mm (25.3") D x 1,799 mm (70.8") H
Standard Finish: piano black cabinet, white midrange horn, other colors are available by special order
Connection: tri-wired Speakon connectors and binding posts
Grounding: Speakon connector
2-way Systems
​
The 2-way systems are the basis of all my speaker design. They provide accurate sound reproduction, a compact size, and excellent value for money.
​
8"2-Way
​
This is the smallest system which is a design dated back to 2007. It is based on an excellent 200 mm (8") neodymium magnet woofer of European origin possessing a very nice warm, musical sound. The cone material is treated paper. This high efficiency woofer (94 db/ watt) is capable of handling 200 watts music.
​
The first generation 8"2-Way was a medium size design sold with a stand. I made a larger, floor standing version in 2009 wiith a bigger 200 mm (8") horn.
The 8"2-Way C was created in 2016: a three piece design consisting of a bass module, a midrange module, and a base. The horn size was increased to 260 mm (9.85").
​
I made another version, the 8"2-Way N in 2018 by incorporating the cabinet design of the 3-way system. It has the same specifications as the 8"2-Way C.
​
The 8"2-Way A is my first active speaker. It has an internal 60 watts transistor amplifier to offer compact size and beauty while retaining all the sonic quality of the design.
​
8"2-Way C specifications: (Al & Be)
​
Available in two versions:
8"2-Way C Al: aluminium diaphragm in high frequency compressor
8"2-Way C Be: beryllium diaphragm in high frequency compressor
Specifications are the same for the two versions.
​
Specifications:
Driver complement:
Woofer: 200 mm (8"), neodymium magnet, 50.8 mm (2") voice coil, treated paper cone
High frequency compression driver: aluminium or beryllium diaphragm, 46 mm (1.75") voice coil, 25 (1" exit), ferrite magnet
Horn size: 260 mm (9.85"), proprietary contour
Frequency response: 39- 20,000 Hz
Impedance: 8 ohms
Power handing: 200 watts program
Efficiency : 94 dB/watt
Dimensions:
High Frequency Module: 317 mm (12.5") W) x 380 mm (15") D x 317 mm (12.5") H
Bass Module: 317 mm (12.5") W x 380 mm (15") D x 628 mm (24.7") H
Base: 417 mm (16.4") W x 480 mm (18.9") D x 52 mm (2") H
Total external dimensions of speaker: 417 mm (16.4") W x 480 mm (18.9") D x 997 mm (39.3") H
Weight: approximately 55 kg (110 lb) each
Standard Finish: piano black cabinet, white horn, other colors are available by special order
Connection: bi-wired Speakon connectors and binding posts
Grounding: Speakon connector
​
8"2 Way N (Al & Be)
​
Also available in two versions as 8' 2 way N Al and 8" 2 way N Be according to the diaphragm material of the high frequency compression driver.
All specifications as per 8" 2 way C with the exception of the following:
Dimension: 300 mm (12") W x 359 mm (14.1") D x 929 mm (36.6") H
Weight: approximately 45 kg (99 lb) each
8"2 Way A (Al & Be)
​
Available in two versions according to the diaphragm material of the high frequency compression driver, Al for aluminium and Be for beryllium.
​
Specifations:
Driver complement:
Woofer: 200 mm (8"), Neodymium magnet, 50.8 mm (2") voice coil, treated paper cone
Tweeter: compression driver, 69 mm (1.75") aluminum/beryllium diaphragm, ferrite magnet, 25 mm (1") exit
Horn: 260 mm (9.85") diameter, proprietary contour
Frequency response: 39-20,000 Hz
Impedence: 8 ohms
Power handling: 200 watt program
Efficieny: 94 dB/watt
Dimensions: 308 mm (12.1") W X 368 mm (15.5") D X 1,025 mm (40.5") H
Standard finish: piano black cabinet, white horn, other colors are avilable by special order
Speaker connection: Speakon connectors and binding posts, bi-wired
Weight: approximately 55 kg (110 lbs) each
Grounding (for speaker and amplifier): Binding post
Amplifier section:
Output: 60 watts into 8 ohm load
Amplifier type: transistor, class AB
Input impedance: 47K
Input sensitivity: 0.775 volt for rated output
Operating voltage: 110 and 220 volt AC
AC input socket: 20 A IEC connector
Signal input: XLR connector
Output: Speakon connector
.jpg)

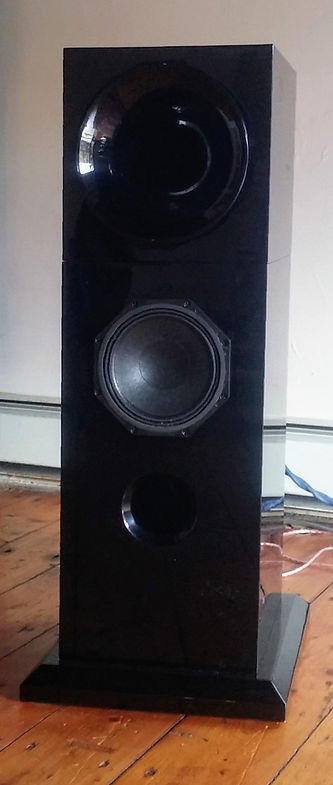

ABOVE: 8" 2-Way C
.jpg)
ABOVE: 8" 2-Way N
.jpg)
ABOVE: 8" 2-Way Active
.jpg)
ABOVE: 8" 2-Way Active
.jpg)
ABOVE: 12" 2-Way
.jpg)
ABOVE: 12" Concentric
12" 2-Way ( Al & Be)
​
It uses the same woofer as in the 12" 3-Way V1 and V2 for tight and articulated bass reproduction.
​
Specifications:
Available in two versions according to the membrane material in the high frequency compression driver, Al for aluminum and Be for beryllium.
Driver Complement:
Woofer: 305 mm (12"), 101.6 mm (4") voice coil, ferrite magnet, treated paper cone
Compression driver: 69 mm (1.75") aluminium/beryllium diaphragm, 25 mm exit (1"), ferrite magnet
Horn: 300 mm (12"), proprietary contour
Frequency response: 25-20,000 Hz
Impedance: 8 ohms
Power handling: 150 watts program
Efficiency: 93 dB/watt
Dimensions: 372 mm (14.7") W x 488 mm (19.2") D x 1,200 mm (47.2") H
Weight: approximately 110 kg (242 lbs) each
Standard Finish: piano black cabinet, white horn, other colors are available by special order
Connection: bi-wired Speakon connectors and binding posts
Grounding: Speakon connector
​
12" 2-Way Concentric (Al & Be)
​
A concentric driver has the acoustic center of the woofer and tweeter located at the same point to eliminate all the interference and distortions generated by separate drivers. The result is a life-like reproduction of the music. The very high efficiency of 96 db/watt means that a single ended triode 3.5 watts 2A3 amplifier can be used to driver it with ease.
​
Specifications:
Driver Complement:
Woofer: 305 mm (12"), 101.6 mm (4") voice coil, ferrite magnet, treated paper cone
High Frequency: 76 mm aluminium/beryllium diaphragm, ferrite magnet , 50.8 mm (2") exit
Frequency response : 35-20,000 Hz
Impedance: 8 ohms
Power handling: 150 watts program
Efficiency: 96 dB/watt
Dimensions: 352 mm (13.9") W x 438 mm (17.2") D x 1,268 mm (49.9") H
Weight: approximately 80 kg (177 lb) each
Standard Finish: piano black, other colors are available by special order
Connection: bi-wire Speakon connectors and binding posts
Grounding: Speakon connector
Modular 3-way Speakers
We are offering several versions of bass, midrange and tweeter modules. A 3-way speaker can be built by stacking them up.This makes speaker building very flexible. Hobbyists with a tight budget can begin with the bass and midrange modules.The tweeter module can be added on later to complete the system. DIY audiophiles can use them to work together with the existing system.
Three grades of cable are also available to cater for all kind of budget.
Bass Modules
There are four models using different size woofers ranging from 10" (25.4 cm) to 18" (46 cm).
All are sold with an internal low pass crossover.
Connection is via Speakon connectors. Binding posts are available as an option at a higher price.
Standard finish is piano black. Other colors available by special order.
Specifications of individual module:
10BM
Cabinet dimensions: 360 mm (14.2) W x 448 mm (17.6") D x 751 mm (29.6") H
Woofer size: 10.6" (270 mm)
Frequency response: 38-2,000 Hz
Impedance: 8 ohms
Power handling: 350 watts RMS
Sensitivity: 93 dB/watt
Maximum Peak SPL: 122 dB
Maximum continuous SPL: 116 dB
Magnet type: ferrite
Voice coil diameter: 4" (101.6 mm)
Cone material: treated paper
Grounding: Speakon connector
12BM
Cabinet dimensions: 420 mm (16.6") W x 510 mm (20.1") D x 873 mm (34.4") H
Woofer size: 12" (30.6 cm)
Frequency response: 35-1,500 Hz
Impedance: 8 ohms
Power handling: 400 watts RMS
Sensitivity: 93 dB/watt
Maximum SPL Peak: 125 dB
Maximum continuous SPL: 119 dB
Magnet type: ferrite
Voice coil diameter: 4" (101.6 mm)
Cone material: treated paper
Grounding: Speakon connector
15BM
Cabinet dimensions: 506 mm (20") W x 652 mm (25.7") D x 1008 mm (39.7") H
Woofer size: 15.4" (391 mm)
Frequency response: 32-1100 Hz
Impedance: 8 ohm
Power handling: 450 watts (AES)
Sensitivity: 95 dB/watt
Maximum Peak SPL: 126 dB
Maximum continuous SPL: 120 dB
Magnet type: ferrite
Voice coil diameter: 4" (101.6 mm)
Cone material: treated paper
Grounding: Speakon connector
18BM
Cabinet dimensions: 590 mm (22.3") W x 762 mm (30") D x 1003 mm (39.5") H
Woofer size: 18" (458 mm)
Frequency response: 20-800 Hz
Impedance: 8 ohm
Power handling: 450 watts
Sensitivity: 96 dB/watt
Maximum Peak SPL: 127 dB
Maximum continuous SPL: 121 dB
Magnet type: ferrite
Voice coil diameter: 4" 100.6 mm
Cone material: treated paper
Grounding: Speakon connect
​
Midrange modules
Four models are available using horns of various sizes ranging from 300 mm (12") to 420 mm (16.5") in diameter.
Connection is by Speakon connector. Binding posts are available at extra cost. Grounding is by Speakon connector.
Standard finish is piano black. Other colors are available by special order.
The compressor driver is the same in all models. It is a modern design with superior performance. The specifications are:
Frequency response: 500-20,000 Hz
Sensitivity: 111 db/watt
Power handling: 100 watts program
Impedance: 8 ohms
Magnet type: neodymium
Diaphragm material: aluminum alloy
Voice coil diameter: 4" (101.6 mm)
Exit diameter: 2" (50.8 mm)
Specifications for individual module:
MM1
Cabinet dimensions: 406 mm (16") W x 406 mm (16") H x 406 mm (16") D
Horn size: 300 mm (12") diameter, proprietary contour
Suggested bass module: 10BM
MM2
Cabinet dimensions: 460 mm (18.1") W X 460 mm (18.1") H x 455 mm (17.9") D
Horn size: 333 mm (13.1") diameter, proprietary contour
Suggested bass module: 12BM
MM3
Cabinet dimensions: 460 mm (18.1") W x 460 mm (18.1") H x 455 mm (17.9") D
Horn size: 380 mm (15") diameter, proprietary contour
Suggested bass module: 12BM,15BM
MM4
Cabinet dimensions: 530 mm (20.9") W x 530 mm (20.9") H x 632 mm (24.9") D
Horn size: 420 mm (16.5") diameter, proprietary contour
Suggested bass module: 15BM,18BM
High Frequency Modules
Three models in two series are available. The Performance Series is compact and economical. Premium Series has full horn loading on the super tweeter for superior detail and ambience.
Two super tweeters are used, their specifications are:
Super Tweeter A
Frequency response: 5,000 -38,000 Hz
Sensitivity: 106 dB/watt
Impedance: 8 ohm
Power handling: 30 watts program
Magnet type: alnico
Diaphragm material: aluminum alloy
Super Tweeter B
Frequency response: 4,000-35,000 Hz
Sensitivity: 103 dB/watt
Impedance: 8 ohms
Power handling: 50 watts program
Magnet type: alnico
Diaphragm material: magnesium
Connection: Speakon connector, except the Performance Series in which the cable is connected directly to the super tweeter's binding posts.
Standard finish: piano black, other color are available by special order.
The Performance Series:
HMP
Cabinet dimensions: 230 mm (9") W x 230 mm (9") H x 170 mm (6.7") D
Super tweeter model: Model A
The Premium Series:
HMPM1
Cabinet dimensions:
Without horn: 335 mm (13.2") W x 335 mm (13.2") H x 412 mm (16.2") D
Horn size: 263 mm (10.75") diameter, proprietary contour
Super tweeter model: Model A
Grounding: Speakon connector
HMPM2
Cabinet dimensions:
Without horn: 335 mm (13.2") W x 335 mm (13.2") H x 220 mm (8.7") D
Including horn: 335 mm (13.2") W x 335 mm (13.2") H x 500 mm (19.7") D
Horn size: 275 mm (10.83") diameter, proprietary contour
Super tweeter model: Model B
Grounding: Speakon connector
Crossover Modules
The bass modules already have a built in low pass crossover for the woofer.
The crossover for the midrange and tweeter are built into one unit which is mounted inside the midrange module.
Crossover networks are designed to integrate a specific pair of drivers, ie., a woofer with a midrange or a midrange with a tweeter. As drivers have different specifications, the crossover is not interchangeable. Be sure to select the correct crossover for the drivers when building the speaker.
Dimensions: 245 mm (9.7") W x 130 mm (5.1") H x 350 mm (13.8") D
Connection: Speakon connector, binding posts are available by special order at extra cost.
Grounding: Speakon connector
Cables & Jumpers for Internal Wiring of Modules
All the module prices do not include internal wiring. There are three grades of internal wiring and jumpers to conect the modules, which are:
budget.
performance,
premium.
Sub-Woofer
This massive sub-woofer is ideal for home theater systems or for audiophiles that need plenty of deep and articulated bass. The 46 cm (18") woofer responses down to 15 Hz.
Specifications:
Cabinet dimensions: 550 mm (21.7") W x 772 mm (30.4") D x 930 mm (36.6") H
Woofer size: 18" (458 mm)
Sensitivity: 94 db/ watt
Frequency response: 15-650 Hz
Impedance: 8 ohms
Power handling: 800 watts
Maximum continuous SPL: 123 dB
Maximum Peak SPL: 129 dB
Magnet type: ferrite
Cone material: treated paper
Voice coil diameter: 4" (101.6 mm)
Recommend amplification: 300 watts minimum
Connection: Speakon connector or binding posts at extra cost
Ground: Speakon connector
Cables
Cables are made in four grades.
The Reference is the top of the line product which has a performance far superior to all my previous models.
Supreme II replaces Sunny Ccable Technology's Supreme as my 2nd best grade.
The Diamond Series replaces Sunny Cable Technology's 1000 series.
The Ruby Series replaces Sunny Cable Techology's 800 series.
The Sapphire Series replaces Sunny Cable Techology's 600 series.
Speaker cables are availbalbe in 1.5 M, 2 M, 2.5 M and 3.0 M as standard. Termination is by Speakon connectors or bare-wired.
Signal and digital cables are available in 0.75 M, 1.0 M, 1.25 M and 1.5 M as standard. Termination is RCA or XLR plugs.
Power cables are available in 1.35 M and 1.65 M as standard, terminated by a 3 prone American plug and either a 10A or 20A IEC connector.
​
All cables are in black sleeves.
Cables of other length and sleeve color are available as special order.
​
THE BOX (power conditioner)
​
Specifications:
Dimensions: 650 mm (25.6 ) W x 300 mm (11.8" ) D x 150 mm (5.9" ) H
Current capacity: 20 A continuous, 110- 250 V
Power Input: 20 A IEC connector
Power output: 4 American Standard 15 A 3 prone connectors
Grounding: Speakon conector
Finish: piano black as standard, other colors are available by special order
Additional outlets: up to 6, available by special order.
​
N.B.
THE BOX is solid with a dedicated 1.5 M (6") power input cable.
Electronics
Integrated Power Amplifier (mono-block)
​
Specifications:
Preamp section: 45 steps L-Pad
Power amp section:
Type: solid state, class AB, bipolar transistor output
Power output: 60 watts RMS into 8 ohms load
Input sensitivity: 0.775 volt for rated output
AC input: 20 A IEC connector
Signal input: XLR (unbalanced) connector
Output: Speakon connectors
Grounding (chassis & internal cables): Speakon connector
Dimensions:
Chassis only: 172 mm (6.8") W x 359 mm (14.12") D x 304 mm (12") H
Including heat sink and volume control knob: 172 mm (6.8") W x 408 mm (16.1") D x 304 mm (12") H
Finish: brush aluminium in black or orginal Al color
​
Power Amplifier (mono-block):
All specifications as the same as the integrated power amplifier.
​
​
​
ABOVE: Integrated Amplifier
